Material with possible operation on the console
This type of configuration allows operation on the screen connected to the server (console). The operation can be done directly on the server – mosaic view, cyclic, record search – The operation from client workstations (Windows, Mac or Linux) is recommended if the servers are loaded.
All servers are delivered ready to run: disks formatted and mounted, operating system loaded, licenses and software options installed.
CamTrace Micro Box
Add camera licenses and software options.
CS5083 – CamTrace Micro Box – Mini desktop – SSD system 128 Go – DD 1 To
Micro fanless chassis, Proc. Intel Celeron J4125 4 x 2,0 Ghz . 1 DD 2,5″ AV – 2 res. Gb/s – 4 Go RAM DDR4
System loaded on mSATA 128 Go – video output 1 HDMI 1.4 + 1 HDMI 2.0 – Boot on USB – 3 USB 3.0 + 1 USB 2.0 + 1 USB type C – Power supply 60W ext. DC 12 V – Dim L132 x P125 x H46 mm.
Number of cams supported : 8 FHD à 25 i/s + visu console 4 x 4CIF à 15 i/s
Max. capacity: 10 FHD cameras at 25 fps on 1 TB

CS5082 – CamTrace Micro Box – Mini desktop – System SSD 128 GB – DD 1 Obsolete – Replaced by CS5083
Micro fanless chassis, Intel Celeron J1900 Processor 4 x 1.99 Ghz . 1 HDD 2.5″ AV – 2 Gb/s res. – 4 GB RAMSystem loaded on mSATA 128 GB – HDMI + DP outputs – boot on USB.Dim W134 x D126 x H40,6 mm.3 USB 2.0 – 1 USB 3.0 – Power supply 60W ext. – VESA support included – Number of cams supported : 8 FHD at 25 fps + console viewer 4 x 4CIF at 15 fps
Max. capacity: 10 FHD cameras at 25 fps on 1 TB

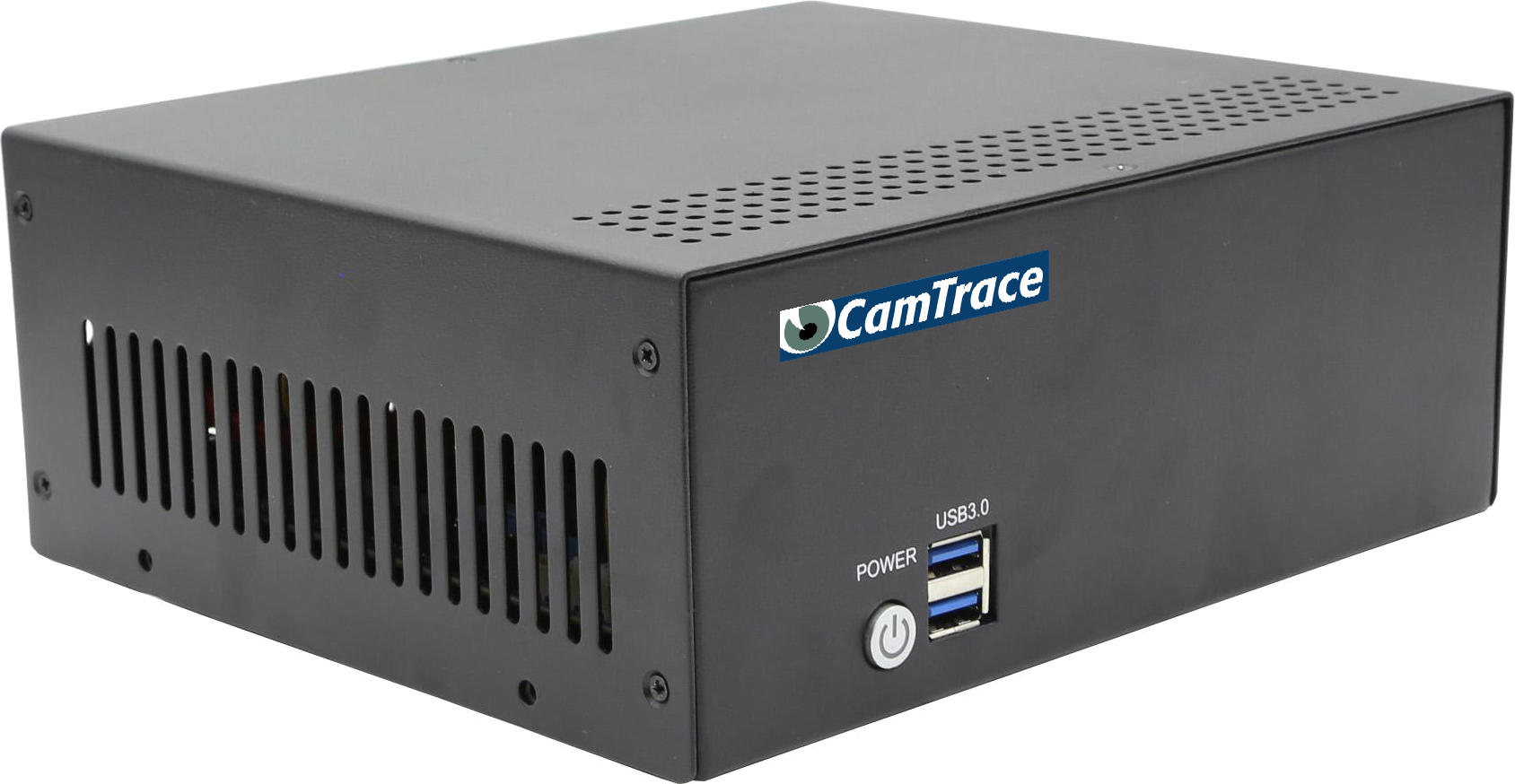

CamTrace Mini Box
Add camera licenses, software options and data disk.
CS5060C – CamTrace Mini Box – Mini desktop – 128 GB system SSD – 1 HD slot
Mini ITX chassis, Intel G5400 2 x 3,7 Ghz processor – 4 Gb/s network cards – Mem. 4 GB. System loaded on 128 GB mSATA SSD – HDMI and Display port outputs – USB troubleshooting and system reinstallation key included. – 2 USB 2.0 – 4 USB 3.0 – Dim W320 x D175 x H45 mm. – External power supply. 120W external power supply.
Recommended use: 16 FHD at 25 fps + console video 4 x 4CIF at 15 fps – max 25 FHD at 25 fps
Add a 3.5″ 24/7 data drive of 2, 4, 6, 8, 10, 12 or 14 TB.
Max capacity: 25 FHD cameras at 25 fps on 14TB

CS5060B – CamTrace Mini Box – Mini desktop – System SSD 128 GB – 1 HDD slot Obsolete – Replaced by CS5060C
Mini ITX chassis, Intel G5400 Processor 2 x 3,7 Ghz – 2 network cards Gb/s – Mem. 4 Gb. System loaded on SSD mSATA 128 GB – HDMI and Display port outputs – USB key for troubleshooting and system reinstallation provided. – 6 USB 2.0 – 2 USB 3.0 – Dim W200 x D175 x H78 mm. – Power supply. 120W external power supply.
Recommended usage : 16 FHD at 25 f/s + console display 4 x 4CIF at 15 f/s – max 25 FHD at 25 f/s
Add a 3,5″ 24/7 data HDD of 2, 4, 6, 8, 10, 12 or 14 TB.
Max. capacity: 25 FHD cameras at 25 fps over 14TB

CamTrace Box
Add camera licenses, software options and one or two data disks.
CS1367B – CamTrace Box 1U – 2 internal HDD slots
1U rack chassis – Proc I3-9100, 4/4 cores/threads – 3.6 Ghz, 6 Mb cache – 2 Gb/s network cards – Keyboard. Box-Light-GR mouse8 GB DDR4 RAM – 2 slots DD 3,5″ internal – System on SSD mSATA 128 GB – HDMI + DP outputs. – USB key for
troubleshooting and reinstalling the system provided. – 6 USB 2.0 – 2 USB 3.0 – Internal 250W power supply. Dim W440 x D300 x H45 mm.Recommended use: 20 FHD at 25 fps + 9 x 4 CIF console display at 25 fps.Add one or two data HDD 3,5″ 24/7 of 2, 4, 6, 8,
10, 12 or 14Tb.
Maximum capacity: 50 FHD cameras at 25 f/s over 28 TB

CamTrace Light
Add camera licenses, software options and one or two data disks.
CS1377B – CamTrace Light 1U – 2 internal HDD slots
1U rack chassis – Proc I5-9400, 6/6 cores/threads – 2.9 Ghz, 9 MB cache – 2 Gb/s network cards – Keyboard. Box-Light-GR mouse
8 GB DDR4 RAM – 2 slots DD 3,5″ internal – System on SSD mSATA 256 GB – HDMI + DP outputs. – USB key for troubleshooting and reinstalling the system provided. – 6 USB 2.0 – 2 USB 3.0 – Internal 250W power supply. Dim W440 x D300 x H45 mm.
Recommended use: 30 FHD at 25 fps + 9 x 4 CIF console display at 25 fps.
Add one or two data HDD 3,5″ 24/7 of 2, 4, 6, 8, 10, 12 or 14Tb.
Maximum capacity: 60 FHD cameras at 25 f/s over 28 TB
